Silver Liner Wing Type

SilverLiner Wing Type

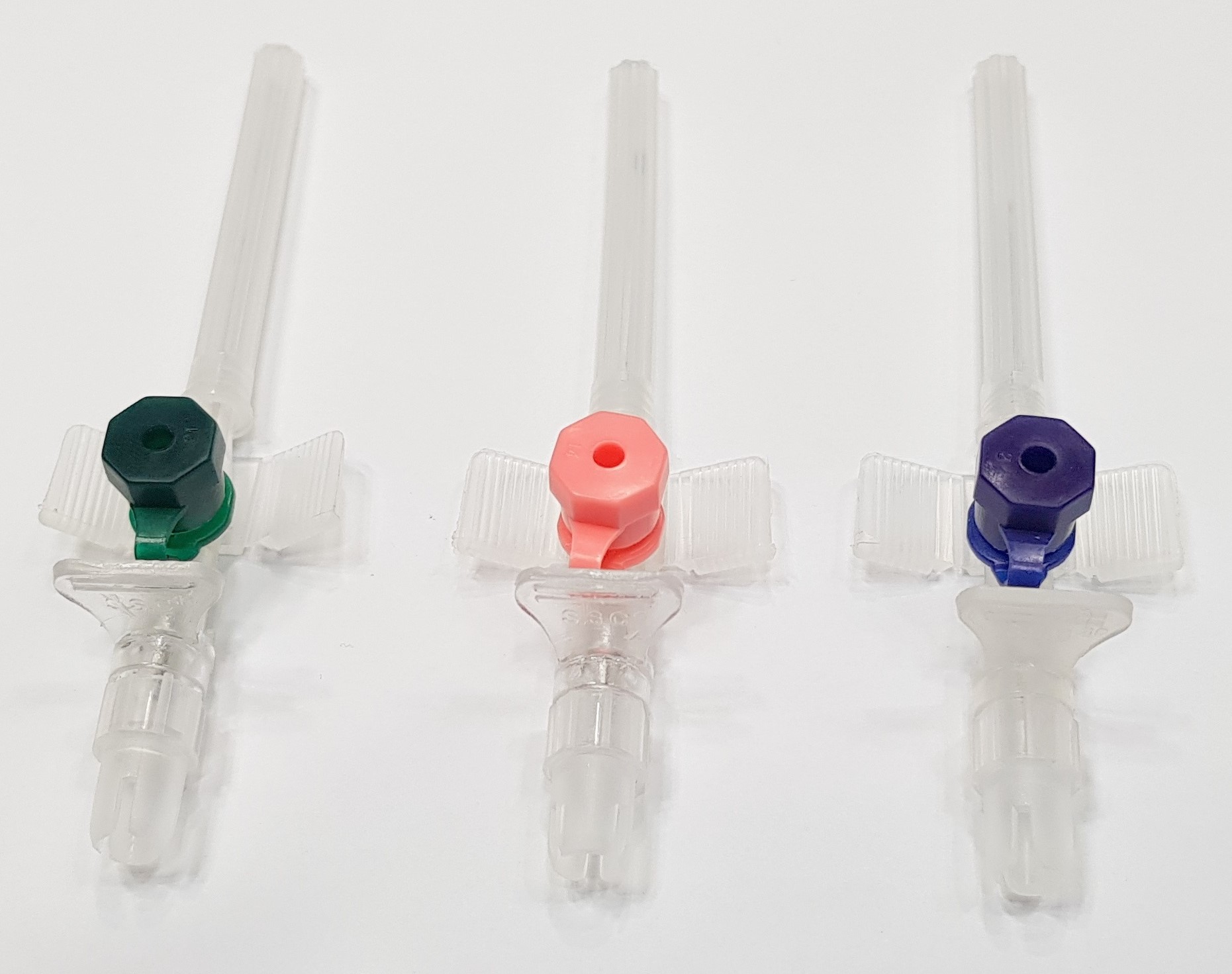

SILVER liner wing type I.V. Cannula with injection port & valve.


I.V. Needle

Especially grinded needles, silicon zed sharp bevel. Well-organize insertion, based on high performance.Zero chance of inadvertent.

Needle hub

  • Cover Line needle hub to keep smart grip during insertion.
  • Blood comes into transparent hub & identify of perfect cannulization.
  • Catheter
  • Injection Port
  • Cover Lines wings
  • Sterilization
  • Salient Features
  • 3- Stripe Radio opaque Catheter ETFE/FEP tube are used for tip forming & it done on fully automatic tip formation plant , so the tip always stick with needle for smooth insertion
  • 3- Stripe Radio opaque Catheter ETFE/FEP tube are used to identify any emergency, catheter tube can be traced by x-rays.
  • ETFE/FEP Catheter Tube surface are extra smooth & inserting with out any resistance of thrombogenicity ; Causing lowest resistance during insertion because of ignorable coefficient of friction.
  • Through injection port medicines can be given with out enlarging extra insertion, Non return valve is placed in line inside the hub.
  • To make a compact grip on wriest, wings are given cover lines shape. Cover lines wings handy for ideal cannulization .
  • Sterilization system works under controlled fresh air process.
  • Ethylene oxide gas is used for sterilizing.
  • Peel open blister pack. (Special order Tyvek paper packing can provide) Flow rate given on each pack. Manufacturing & Expiry date printed on every pack.
  • Air filter plug can be provided on order , presently chocked chamber is used for examine.

International Color Code,

  • International Standard Organization color code approved for each gauge size. & also FDA / CE recommended.


Color Code Gauge Catheter Ext. Dia X length(mm) Water flow rate as BS –4843, ml /mm
Grey 16 1.70 X 45 180
Green 18 1.20 X 38 90
Pink 20 1.00 X 32 57
Blue 22 0.80 X 25 33
yellow 24 0.70 X 19 13
