IV Cannulas
Four expertly engineered cannula variants
Our flagship range of IV cannulas, designed for atraumatic insertion, secure fixation and reliable flow. Available in four configurations to suit every clinical need, from pediatric to high-flow adult applications. Tri-bevelled needle with FEP/ETFE catheter and radiopaque stripe.
- Radio-opaque
- ISO 10555-1
- ISO 10555-5
- CE
- GMP
Key features
- Tri-bevelled needle for atraumatic insertion
- Radiopaque FEP/ETFE catheter material
- Transparent flashback chamber
- Color-coded gauge identification (ISO 10555-5)
- Hydrophobic blood-control valve (Type 4)
- EtO-sterilized, individually peel-pouch packed
Specifications
| Gauges | 16G, 18G, 20G, 22G, 24G |
|---|---|
| Material | FEP or ETFE catheter, stainless-steel needle |
| Flow rate | Specific to size |
| Sterilization | Ethylene Oxide (EtO) |
| Packaging | 50 pcs / box, 2,000 pcs / carton |
| Unit packaging | 1 pc / sterile blister pack |
| Standard | ISO 10555-1, ISO 10555-5 |
Four Configurations, One Standard
Choose the IV cannula type that matches your clinical workflow.
Type 1 - Straight Cannula
Without injection port, without wings, with filter plug
Best for: Short-term peripheral access, emergency and trauma use
Type 2 - Winged Cannula
With fixation wings, without injection port
Best for: Improved stabilization for active patients
Type 3 - Injection Port Cannula
With injection port and wings
Best for: Intermittent drug administration alongside infusion
Type 4 - Movable Wing Cannula
With movable wings and injection port
Best for: Maximum healthcare-worker protection, needle-stick prevention
Quality control
Every batch is sampled for dimensional accuracy, flow performance and sterility assurance, with records retained for full lot traceability.
Research and development
Our in-house team refines geometries, materials and packaging so each device performs consistently in real clinical use.
Enquire about this product
Send us your volumes and destination market for pricing and lead times.
Product inquiry form
Connect this area to your preferred form service.
Fields this area expects
- Full name
- Company / hospital
- Phone
- Product
- Quantity
- Message
Complementary products you may need
Syringes 3cc & 5cc
Sterile single-use syringes with smooth-glide plungers and precision-graduated barrels.
View details
Insulin Syringes
Fine-gauge needles with low dead-space barrels for accurate insulin dosing.
View details
IV Infusion Sets
Kink-resistant infusion sets with luer-lock fittings and roller-clamp flow control.
View details

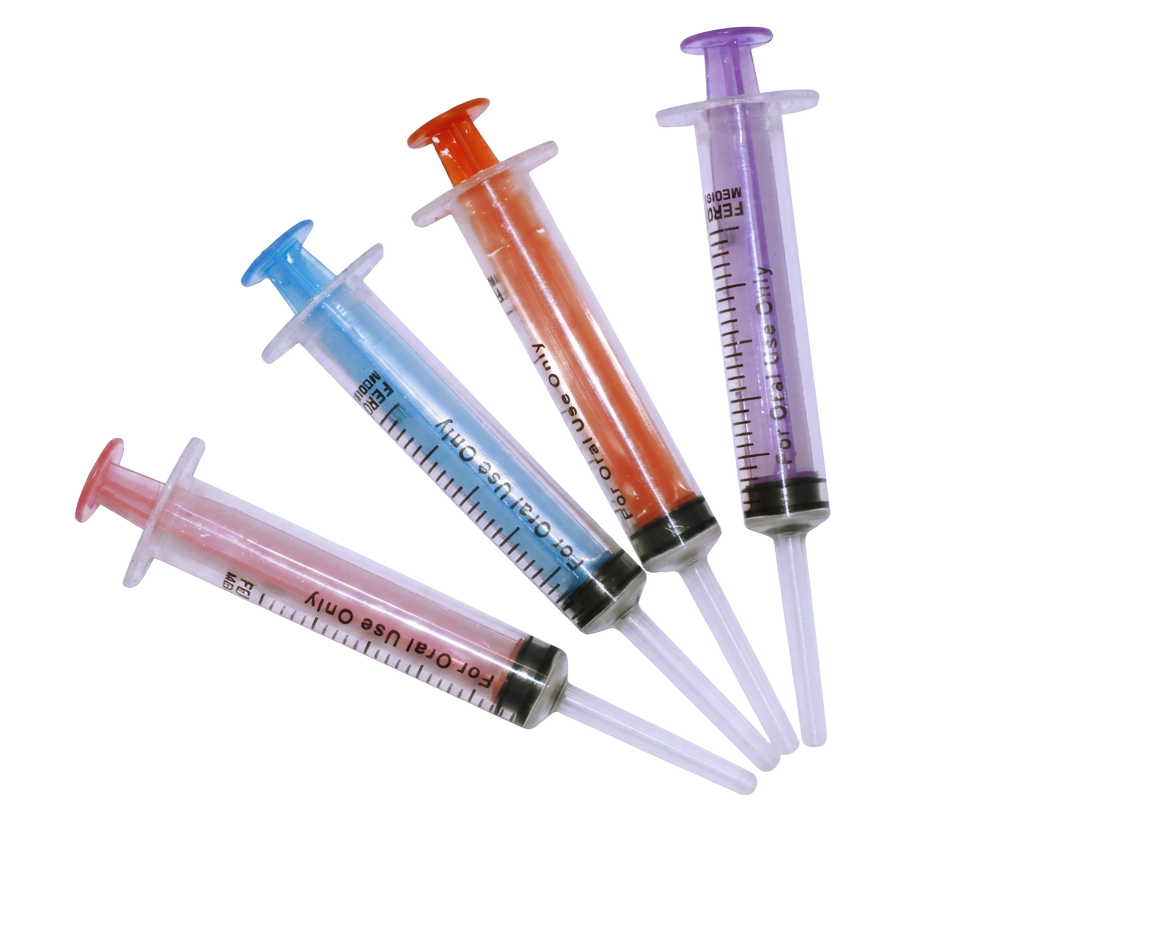

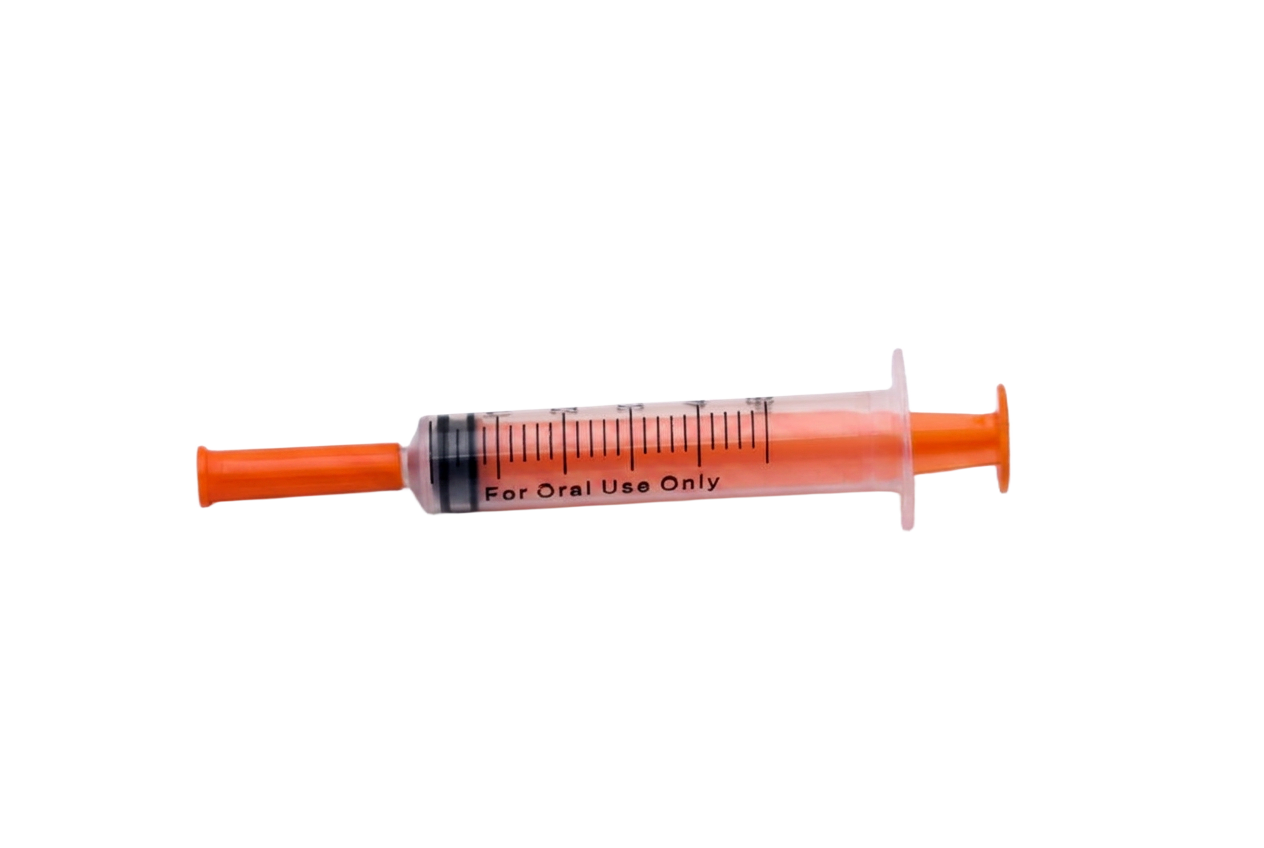

Baby Doses
