SILVER SURGICAL COMPLEX (PVT) LTD
Silver Moveable Wing Type
SilverMoveable Wing Type

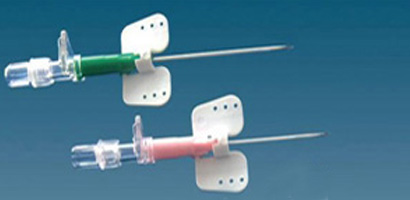

SILVER Moveable wing type I.V. Cannula with heparin lock.
Features
I.V. Needle
- Particularly back grinded three facet sharp bevel needle.
- Well-organized insertion on high performance.
- Zero chance of inadvertent.
- 3 Holes Moveable Wings
- Needle Hub
- Catheter
- Heparin lock
- Sterilization
- Salient Features
- Moveable wings can be adjusted for firm grip on wriest, Moveable wings are ideal for smart insertion of catheter with out pain
- Transparent wide needle hub keeps smart grip during insertion.
- Blood comes into transparent hub & clearly identify for perfect cannulization.
- Japanese 3- Stripe Radio opaque Catheter ETFE/PTFE/FEP tube are used for tip forming & it done on automatic tip formation machines, so the tip always stick with needle for smooth insertion.
- 3- Stripe Radio opaque Catheter ETFE/PTFE/FEP, tube are used to identify any emergency, catheter tube can be traced by x-rays.
- ETFE/PTFE/FEP Catheter Tube surface are extra smooth & inserting with out any resistance of thrombogenicity.
- Causing lowest resistance during insertion because ignorable coefficient of friction.
- Yellow heparin lock can be fit on back of catheter hub so i.v. line can be used for injectable with out introducing an other pole.
- Sterilization system works under controlled fresh air process.*Ethylene oxide gas is used for sterilizing.
- Peel open blister pack.( special order Tyvek paper packing can provide).Flow rate given on pack. & Expiry date printed on pack. Air filter plug can be provided on order; presently chocked chamber is used for examined.
International Color Code,
- International Standard Organization color code approved for each gauge size. & also FDA / CE recommended.
PRODUCT CLASSIFY BY COLOR CODE
| Color Code | Gauge | Catheter Ext. Dia X length(mm) | Water flow rate as BS –4843, ml /mm |
|---|---|---|---|
| Grey | 16 | 1.70 X 45 | 180 |
| Green | 18 | 1.20 X 38 | 90 |
| Pink | 20 | 1.00 X 32 | 57 |
| Blue | 22 | 0.80 X 25 | 33 |
| yellow | 24 | 0.70 X 19 | 13 |
